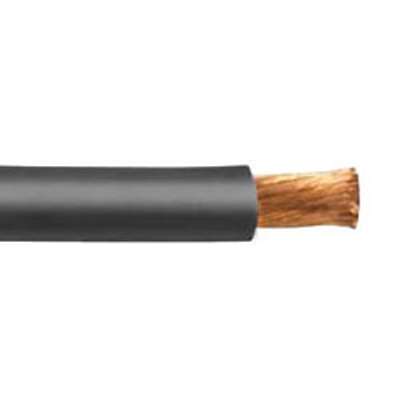

4 AWG Flexible Welding Cable. Sold by the spool.

Min: 1 ft., Max: 10000 ft. To order multiple lengths, simply enter the desired footage into the quantity fields. Each length will be delivered on its own spool.
250 ft. Spool
500 ft. Spool
1000 ft. Spool
Black
Red
Green
Blue
Add a length

 Free Shipping on all orders over $1000

4 AWG Welding Cable Class K 250ft, 500ft or 1000ft Spool

SKU
WCK4

Product Details

Learn everything you want to know about this product to make an informed purchase

4 AWG Flexible Welding Cable - Sold by the spool.

Colors Available:
Black, Red, Green

Applications:
Secondary voltage resistance welding leads. Power supply applications not exceeding 600 volts AC.

Also Known As:
Battery Cable, 4 Gauge Welding Lead, Temporary Power Cable, 4 Gauge Flexible Cable, 600 Volt Cable, #4 Copper Cable, 4 Gauge Welders Lead, Hurricane Cable, etc.

Features:
Good flexibility. Abrasion-resistant. Good color retention.

Jacket:
Premium-grade 90ºC EPDM, black or red. Temperature range: -40ºC to +90ºC

Standards:
RoHS Compliant

Conductor:
Fully annealed stranded bare copper Class K

Specifications*:

Size: 4 AWG
Conductor Strand: 374/30
Outside Diameter: 10.16 mm / 0.400 inches
Weight: 0.180 lbs per ft
Current Amps: 100 (For 600 Volt In-Line Applications)

*Data provided on this page is subject to change based on different manufacturers variances.

More Information
Wire Size4 AWG
# of Conductors1 Conductor
Conductor MaterialBare Copper
Stranded or SolidStranded
O.D. (Inches)0.40
Ampacity100
Voltage600V
