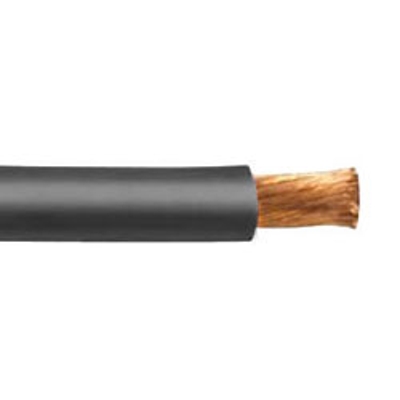

#4 Welding Cable Class K
Cut to length - Sold by the foot
Minimum 1' to maximum 5000'. Please call for longer put ups
Black, Red, Green
Secondary voltage resistance welding leads. Power supply applications not exceeding 600 volts AC.
Also Known As:
Battery Cable, 4 Gauge Welding Lead, Temporary Power Cable, 4 Gauge Flexible Cable, 600 Volt Cable, #4 Copper Cable, 4 Gauge Welders Lead, Hurricane Cable, etc.
Good flexibility. Abrasion-resistant. Good color retention.
Premium-grade 90ºC EPDM, black or red. Temperature range: -40ºC to +90ºC
Fully annealed stranded bare copper Class K
Size: 4 AWG
Conductor Strand: 374/30
Outside Diameter: 10.16 mm / 0.400 inches
Weight: 0.180 lbs per ft
Current Amps: 100 (For 600 Volt In-Line Applications)
*Data provided on this page is subject to change based on different manufacturers variances.
