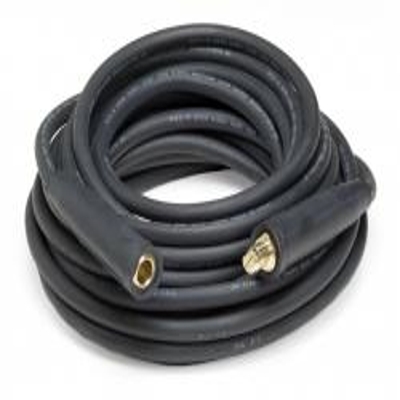

4/0 Welding Cable Lead w/ Lenco Male & Female Connectors, 100ft Lead
Secondary voltage resistance welding leads. Power supply applications not exceeding 600 volts AC.
Also Known As:
4/0 Welding Lead, 4/0 Welders Lead
Rugged jacket, good flexibitlty. Multiple colors available. Resists abrasion, cut, tear, flame, grease, oil & water.
EPDM jacket. Temperature range: -50ºC to +105ºC. Black, blue, green, red, yellow colors available.
1 Tweco Male Lenco LC40HD Connector and 1 Female Lenco LC40HD Black Connector
Fully annealed stranded bare copper
Conductor Strand: 2014/.010
Outside Diameter: .710 Inches
Weight: 0.734 lbs per ft
Current Amps: 50ft = 550/500 AMPS - 100ft = 350/400 AMPS
Resistance Ohms/1000': .88
