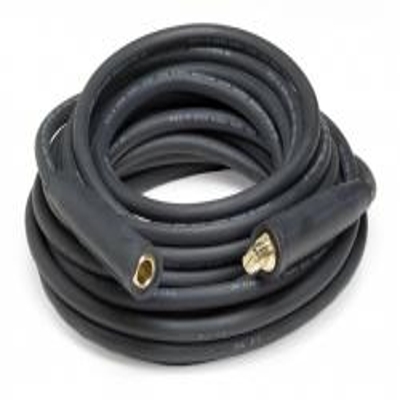

4/0 Welding Cable Lead w/ Lenco Male & Female Connectors, 25ft Lead

Min: 1 ft., Max: 10000 ft. To order multiple lengths, simply enter the desired footage into the quantity fields. Each length will be delivered on its own spool.
Add a length

 Free Shipping on all orders over $1000

4/0 Welding Cable Lead w/ Lenco LC40HD M/F Connectors, 25ft Lead


Product Details

Learn everything you want to know about this product to make an informed purchase

4/0 Welding Cable Lead w/ Lenco Male & Female Connectors, 25ft Lead

Secondary voltage resistance welding leads. Power supply applications not exceeding 600 volts AC.

Also Known As:
4/0 Welding Lead, 4/0 Welders Lead

Rugged jacket, good flexibitlty. Multiple colors available. Resists abrasion, cut, tear, flame, grease, oil & water.

EPDM jacket.  Temperature range: -50ºC to +105ºC. Black, blue, green, red, yellow colors available.

1 Tweco Male Lenco LC40HD Connector and 1 Female Lenco LC40HD Black Connector

Fully annealed stranded bare copper


Size: 4/0
Conductor Strand: 2014/.010
Outside Diameter: .710 Inches
Weight: 0.734 lbs per ft
Current Amps: 50ft = 550/500 AMPS - 100ft = 350/400 AMPS
Resistance Ohms/1000': .88

More Information
Wire Size4/0 AWG
# of Conductors1 Conductor
Conductor MaterialBare Copper
Stranded or Solid Stranded
O.D. (Inches)0.71
