2/0 Welding Cable Lead w/ Tweco 2MPC M/F Connectors, 50ft

SKU
WCL2s0MFT50

Product Details

Learn everything you want to know about this product to make an informed purchase

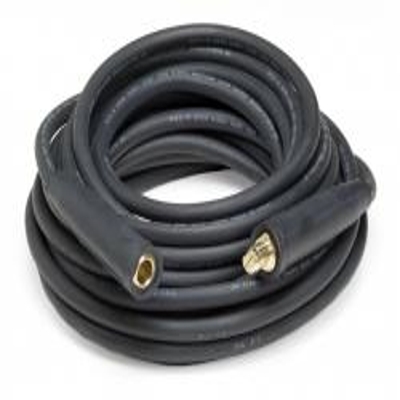

2/0 Welding Cable Lead w/ Tweco Male & Female Connectors, 50ft Lead

Applications:
Secondary voltage resistance welding leads. Power supply applications not exceeding 600 volts AC.

Also Known As:
2/0 Welding Lead, 2/0 Welders Lead

Features:
Rugged jacket, good flexibitlty. Multiple colors available. Resists abrasion, cut, tear, flame, grease, oil & water.

Jacket:
EPDM jacket.  Temperature range: -50ºC to +105ºC. Black, blue, green, red, yellow colors available.

Connectors:
1 Lenco 2MPC Male Tweco Connector and 1 Female Tweco 2MPC Black Connector

Standards:
RoHS Compliant

Conductor:
Fully annealed stranded bare copper

Specifications*:

Size: 2/0
Conductor Strand: 1,235/.010
Outside Diameter: .591 Inches
Weight: 0.470 lbs per ft
Current Amps: 50ft = 400/450 AMPS - 100ft = 250 AMPS
Resistance Ohms/1000': .88

More Information
Wire Size2/0 AWG
# of Conductors1 Conductor
Conductor MaterialBare Copper
Stranded or SolidStranded
O.D. (Inches)0.591
