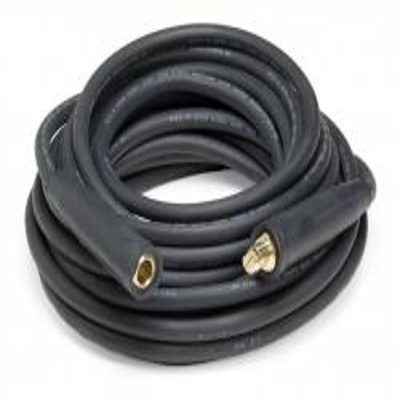

2/0 Welding Cable Lead w/ Tweco 2MPC M/F Connectors, 25ft

SKU WCL2s0MFT25
How will you purchase this wire?
174.610000 174.610000
truck FREE SHIPPING ON ORDERS OVER $1000

Please Select Color(s)

Multiple colors can be selected

.... .... .... ....

Multiple lengths can be selected

Each
Quantity

Select your preferred quantity for each color below. Add additional colors and lengths as needed.

2/0 Welding Cable Lead w/ Tweco 2MPC M/F Connectors, 25ft

Grouped product items
Color Length (ft.)
Black Length Each ft.
Blue Length Each ft.
Red Length Each ft.
Yellow Length Each ft.
truck FREE SHIPPING ON ORDERS OVER $1000
Product Details

Learn everything you want to know about this product to make an informed purchase

Specifications
  • Wire Size

    2/0 AWG

  • # of Conductors

    1 Conductor

  • Conductor Material

    Bare Copper

  • Stranded or Solid

    Stranded

  • O.D. (Inches)

    0.591

Data provided on this page is subject to change based on different manufacturers variances.
See Less
More information

2/0 Welding Cable Lead w/ Tweco Male & Female Connectors, 25ft Lead

Applications:
Secondary voltage resistance welding leads. Power supply applications not exceeding 600 volts AC.

Also Known As:
2/0 Welding Lead, 2/0 Welders Lead

Features:
Rugged jacket, good flexibitlty. Multiple colors available. Resists abrasion, cut, tear, flame, grease, oil & water.

Jacket:
EPDM jacket.  Temperature range: -50ºC to +105ºC. Black, blue, green, red, yellow colors available.

Connectors:
1 Lenco 2MPC Male Tweco Connector and 1 Female Tweco 2MPC Black Connector

Standards:
RoHS Compliant

Conductor:
Fully annealed stranded bare copper

Specifications*:

Size: 2/0
Conductor Strand: 1,235/.010
Outside Diameter: .591 Inches
Weight: 0.470 lbs per ft
Current Amps: 50ft = 400/450 AMPS - 100ft = 250 AMPS
Resistance Ohms/1000': .88
