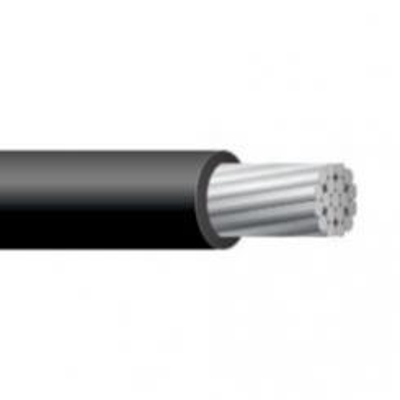

2/0 Yale URD Direct Burial Cable - Single Aluminum Conductor

2/0 Underground Secondary Distribution Cable

Yale - 2/0 Single Aluminum Conductor 600V URD. Sold by the foot.

Color:
Black

Description:
Aluminum 600V URD cable is designed for use in secondary distribution circuits, where installed in duct or direct burial applications. Maximum operating temperature is not to exceed 90°C in wet and dry locations. Voltage rating is 600 volts. As an option, this cable can provided pre-pulled into duct.

Conductor:
Aluminum 600V URD cable has a concentric strand or compressed 1350-H19 series aluminum conductor.

Insulation:
Aluminum 600V URD cable has a black cross linked polyethylene (XLP) insulation.

Applicable Standards:
- ASTM B-230
- ASTM B-609
- ICEA S-105-692
- RUS ACCEPTED

2/0 Single Conductor URD Cable Specifications*:

Conductor-Size: 2/0
Conductor Strand: Compressed 1350-H19 series aluminum conductor
Outside Diameter: .555 inches
Ampacitivity-Directly Buried: 263
Weight: 0.1770 lbs per ft.


*Data provided on this page is subject to change based on different manufacturers variances. Ampacity 90°C conductor temperatures, 20°C ambient temperature. RHO 90. 100% load factor. Ampacity not for NEC applications. For NEC applications, consult appropriate NEC ampacity section.
