West Penn D980, 18 AWG 1 Pair, Solid, Unshielded FPLR, Addressable Fire Alarm Cable



500ft Spools Ships 2 to 3 days from Factory

Min: 1 ft., Max: 10000 ft. To order multiple lengths, simply enter the desired footage into the quantity fields. Each length will be delivered on its own spool.
500 ft.
1,000 ft.
Add a length

 Free Shipping on all orders over $1000

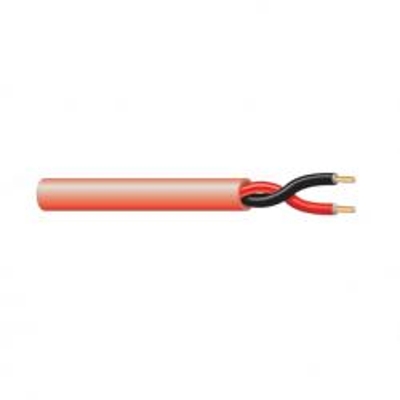

West Penn D980, 18 AWG 1 Pair, Solid, Unshielded FPLR, Addressable Fire Alarm Cable

SKU
WPD980

Product Details

Learn everything you want to know about this product to make an informed purchase

****SHIPS WITHIN 1-2 BUSINESS DAYS***

West Penn D980, 18/1 Pair Solid bare copper conductors, unshielded Addressable Fire Alarm Cable, with an overall jacket.


Jacket Color:
Red

Insulation Colors:
Red, Black

Applications:
Indoor data fire alarm cable for (Data Circuits, Initiating Circuits, Notification Circuits, Addressable Systems)

Compliances:
(UL) Listed, FPLR, NEC Article 760, UL 1666

Conductor:
Solid, Bare Copper

Insulation:
Polyolefin

Jacket:
PVC

Specifications*:

Size: 18 AWG
Number of Pairs: 1
Stranding: Solid
Outside Diameter: 0.196 inches
Weight: 0.022 lbs/ft

Spec Sheet

Belden 5500FE Spec SheetView Spec Sheet for Complete Details (PDF)



More Information
Cable TypeFire Alarm
Wire Size18 AWG
# of Conductors2 Conductors
# of Pairs1 Pair
