West Penn AQC358 Aquaseal Water Block, 20/3C, Stranded, Unshielded/Shielded, Communication Cable Outdoor Rated

SKU WPAQC358
truck FREE SHIPPING ON ORDERS OVER $1000

Total Items:

Total Price:
Product Details

Learn everything you want to know about this product to make an informed purchase

Specifications
  • Cable Type

    Communication

  • Wire Size

    20 AWG

  • # of Conductors

    3 Conductors

  • O.D. (Inches)

    0.260

Data provided on this page is subject to change based on different manufacturers variances.
See Less
More information

****SHIPS WITHIN 1-2 BUSINESS DAYS***

****10k minimum order***

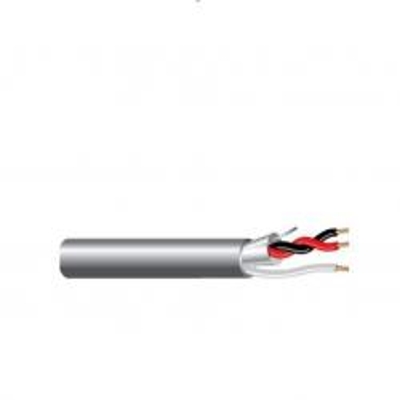

West Penn AQC358, 20/3 Stranded bare copper conductor, unshielded/shielded, with an Aquaseal tape and overall jacket.

Jacket Color:
Gray

Applications:
Materials suitable for outdoor use, and indoor trays, allows a variety of uses for (Intercom, Security, Sound, Audio, Background music)

Compliances:
(UL) C(UL) Listed, (ETL)us Listed

Conductor:
Stranded, bare copper
CM or CL3, NEC Article 800 and 725

Insulation:
PVC

Jacket:
Sunlight/Moisture Resistance PVC

Specifications*:

Size: 20 AWG
Number of Conductors: 3 (2 shielded, 1 unshielded)
Nominal Jacket Thickness: 0.025 inches
Outside Diameter: 0.260 inches

Spec Sheet

Belden 5500FE Spec SheetView Spec Sheet for Complete Details (PDF)
