West Penn AQC3274 Aquaseal Water Block, 22/15C, Shielded, Communication Cable, Outdoor Rated

SKU WPAQC3274
truck FREE SHIPPING ON ORDERS OVER $1000

Total Items:

Total Price:

Product Details

Learn everything you want to know about this product to make an informed purchase

Specifications
  • Cable Type

    Communication

  • Wire Size

    22 AWG

  • # of Conductors

    15 Conductors

  • O.D. (Inches)

    0.361

Data provided on this page is subject to change based on different manufacturers variances.
See Less
More information

****SHIPS WITHIN 1-2 BUSINESS DAYS***

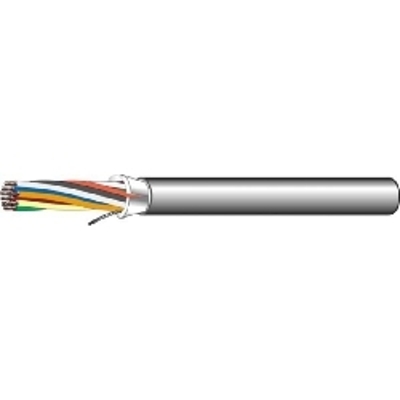

West Penn AQC3274, 22/15 Stranded bare copper conductors, shielded with an Aquaseal tape and overall jacket.

Jacket Color:

Gray

Applications:
Materials suitable for outdoor use, and indoor trays, allows a variety of uses for (Intercom, Security, Sound, Audio, Background music)

Compliances:
(UL) C(UL) Listed, (ETL)us Listed

Conductor:
Stranded, bare copper
CM or CL3, NEC Article 800 and 725

Insulation:
PVC

Jacket:
Sunlight/Moisture Resistance PVC

Specifications*:

Size: 22 AWG
Number of Conductors: 15
Stranding: 7x30
Nominal Jacket Thickness: 0.025 inches
Outside Diameter: 0.361 inches

Spec Sheet

Belden 5500FE Spec SheetView Spec Sheet for Complete Details (PDF)
