West Penn AQ293 Aquaseal Water Block, 18/2, Stranded, Overall Shielded, Direct Burial, Fire-Alarm Cable

SKU WPAQ293

$

0.584680

0.584680

/ft
How will you purchase this wire?
0.584680 0.584680
truck FREE SHIPPING ON ORDERS OVER $1000

Please Select Color(s)

Multiple colors can be selected

....

Multiple lengths can be selected

500 1000
Quantity

Select your preferred quantity for each color below. Add additional colors and lengths as needed.

West Penn AQ293 Aquaseal Water Block, 18/2, Stranded, Overall Shielded, Direct Burial, Fire-Alarm Cable

Grouped product items
Color Length (ft.)
Black Length 500 ft.
$292.34
Black Length 1000 ft.
$584.68
truck FREE SHIPPING ON ORDERS OVER $1000
Product Details

Learn everything you want to know about this product to make an informed purchase

Specifications
  • Cable Type

    Fire Alarm

  • Wire Size

    18 AWG

  • # of Conductors

    2 Conductors

  • Direct Burial

    Yes

Data provided on this page is subject to change based on different manufacturers variances.
See Less
More information

****SHIPS WITHIN 1-2 BUSINESS DAYS***

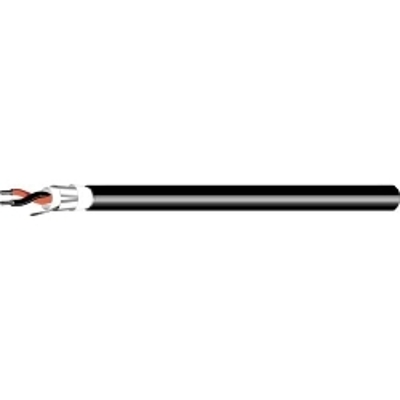

West Penn AQ293, 18/2 Stranded bare copper conductors, overall shield with Aquaseal tape and overall jacket.

Jacket Color:
Black

Applications:
Materials suitable for outdoor use (direct burial), and indoor trays, allows a variety of uses for (Low voltage industrial process control circuits, Power-Limited circuits, Power-Limited fire alarm circuits, Power-Limited tray cable PLTC)

Compliances:
(UL) or (ETL)us Listed –Direct Burial

Conductor:
Stranded, bare copper
FPL – PLTC, NEC Article 760 And 725

Insulation:
PVC

Jacket:
Sunlight/Moisture Resistance PVC

Specifications*:

Size: 18 AWG
Number of Conductors: 2
Stranding: 7x26
Nominal Jacket Thickness: 0.040 inches
Outside Diameter: 0.310 inches

Spec Sheet

Belden 5500FE Spec SheetView Spec Sheet for Complete Details (PDF)
