West Penn 252815, RG59 20 AWG + 18/2C CMP Siamese Cable

Min: 1 ft., Max: 10000 ft. To order multiple lengths, simply enter the desired footage into the quantity fields. Each length will be delivered on its own spool.
1,000 ft.
Add a length

 Free Shipping on all orders over $1000

West Penn 252815, RG59 20 AWG + 18/2C CMP Siamese Cable

SKU
WP252815

Product Details

Learn everything you want to know about this product to make an informed purchase

****SHIPS WITHIN 1-2 BUSINESS DAYS REEL-IN-BOX***

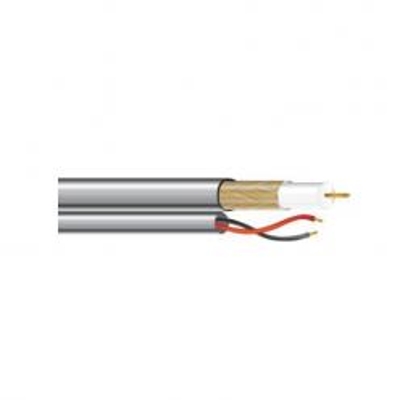

RG59/U 20AWG Bare Copper, 95% Braid + 2 Conductor 18AWG Unshielded – Siamese Construction, Plenum PVC Jacket


Jacket Color:
Ivory

Applications:
Indoor within ducts, plenums, and other spaces used for environmental air for (CCTV)

Compliances:
(UL) C(UL) or c(ETL)us Listed

Conductor:
RG59 20 AWG + Power Cable 18/2C Stranded (7x26) Unshielded

Insulation:
RG59 -- Foam FEP
Power Cable -- Plenum PVC

Jacket:
PVC

Specifications*:

Size: RG59 20 AWG + 18/2C AWG
Stranding: RG59 Solid, 18/2 Stranded Unshielded
Outside Diameter: 0.198 x.465 in
Weight: 0.056 lbs/ft

Spec Sheet

Belden 5500FE Spec SheetView Spec Sheet for Complete Details (PDF)



More Information
StockedYes
# of Conductors3 Conductors
