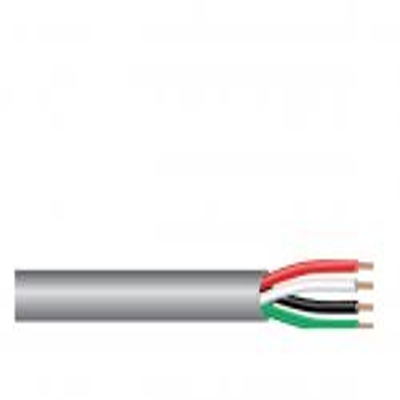

West Penn 25242B, 20 AWG 4 Conductor Unshielded Plenum Speaker Wire



500ft Spools ship 2 to 3 days from Factory



Material Due Date: October 2023

Min: 1 ft., Max: 10000 ft. To order multiple lengths, simply enter the desired footage into the quantity fields. Each length will be delivered on its own spool.
500 ft.
1,000 ft.
Add a length

 Free Shipping on all orders over $1000

West Penn 25242B, 20 AWG 4 Conductor Unshielded Plenum Speaker Wire

SKU
WP25242B

Product Details

Learn everything you want to know about this product to make an informed purchase

20/4 Stranded bare copper conductors, unshielded with an overall jacket.

Color:

Gray

Conductor:
Stranded Bare Copper

Insulation:
Flex Plenum PVC

Jacket:
Flexible Plenum PVC

Color Code:
1. Black 2. Red 3. White 4. Green

Compliances:
(UL) C(UL) Listed or c(ETL)us Listed
CMP, NEC Article 800


Specifications*:

Size: 20 AWG
Number of Conductors: 4
Conductor Stranding: 7x28
Nominal Insulation Thickness: 0.008 in
Nominal Jacket Thickness: 0.015 in
Outside Diameter: 0.156 in
Approx. Weight: 22 lbs / 1000 ft

More Information
Cable TypeAudio
Wire Size20 AWG
# of Conductors4 Conductors
