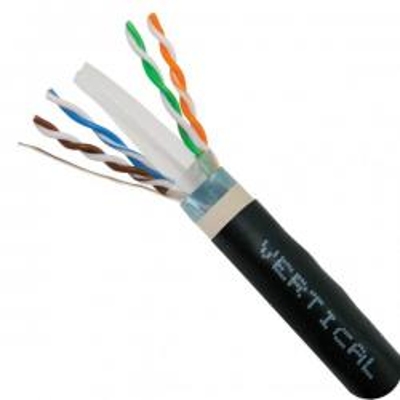

Vertical Cable 069-565ACMXT, CAT6A Direct Burial, UTP, Overall Shield, Waterproof

CAT6A F/UTP Outdoor CMXT, 23/4PR, Direct Burial,  Waterproof, 1000ft Spool

Applicable Standards:
- High-Performance Data Cable
- 550MHz Bandwith for Data Applications
- Category-6A Unshielded Twisted Pair, with Overall Shield
- Easily Identified Color-Striped Pairs
- 23AWG Solid Copper Conductors
- Exceeds TIA/EIA-568C.2, ISO/IEC 11801
- ETL Listed, RoHS Compliant
- 1000ft Wooden Spool

Conductor:
23 AWG solid bare copper

Insulation:
HDPE

Shield:
Overall Shield with Unshielded Twisted Pairs

Jacket:
Outer LLDPE
Inner PVC
-40°C to +60°C

Jacket Color:
Black

Color Code:
- Pair 1: Blue-White/Blue
- Pair 2: Orange-White/Orange
- Pair 3: Green-White/Green
- Pair 4: Brown-White/Brown

Specifications*:

Size: 23 AWG
Number of Pairs: 4
Rip Cord: Yes
Outside Diameter: 0.362 inches
