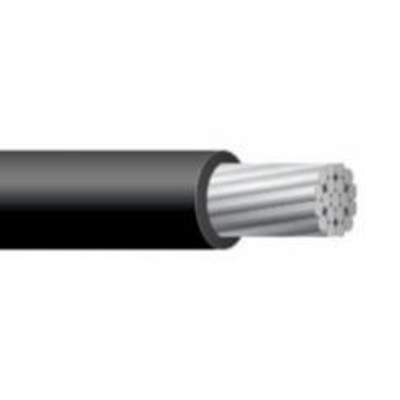

Tufts 3/0 Single Aluminum Conductor 600V URD
Product Details
Learn everything you want to know about this product to make an informed purchase3/0 Underground Secondary Distribution Cable
Tufts - 3/0 Single Aluminum Conductor 600V URD. Sold by the foot.
Color:
Black.
Description:
Aluminum 600V URD cable is designed for use in secondary distribution circuits, where installed in duct or direct burial applications. Maximum operating temperature is not to exceed 90°C in wet and dry locations. Voltage rating is 600 volts. As an option, this cable can provided pre-pulled into duct.
Conductor:
Aluminum 600V URD cable has a concentric strand or compressed 1350-H19 series aluminum conductor.
Insulation:
Aluminum 600V URD cable has a black cross linked polyethylene (XLP) insulation.
Applicable Standards:
- ASTM B-230
- ASTM B-609
- ICEA S-105-692
- RUS ACCEPTED
3/0 Single Conductor URD Cable Specifications*:
Conductor-Size: 3/0
Conductor Strand: Compressed 1350-H19 series aluminum conductor
Outside Diameter: .603 inches
Ampacitivity-Directly Buried: 299
Weight: 0.2150 lbs per ft.
*Data provided on this page is subject to change based on different manufacturers variances. Ampacity 90°C conductor temperatures, 20°C ambient temperature. RHO 90. 100% load factor. Ampacity not for NEC applications. For NEC applications, consult appropriate NEC ampacity section.
Stocked | Yes |
---|---|
Wire Size | 3/0 AWG |
# of Conductors | 1 Conductor |
O.D. (Inches) | 0.603 |
Ampacity | 299 |
Voltage | 600V |
Insulation Material | XLPE - Cross-linked Polyethylene |
Direct Burial | Yes |
Sunlight Resistant | Yes |
