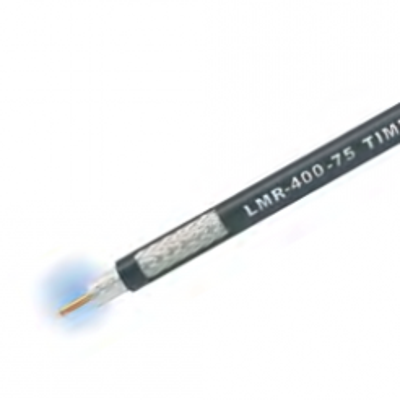

Times Microwave LMR-400-75 Ohm Flexible Low Loss Coax Cable, UV Resistant

SKU LMR40075

$

2.700000

2.700000

/ft
How will you purchase this wire?
2.700000 2.700000
truck FREE SHIPPING ON ORDERS OVER $1000
MIN: 1 FT. | MAX: 10000 FT. 1 10000 tooltip To order multiple lengths, simply enter the desired footage into the quantity fields. Each length will be delivered on its own spool.

Please Select Color(s)

Multiple colors can be selected

....
Quantity

Select your preferred quantity for each color below. Add additional colors and lengths as needed.

Times Microwave LMR-400-75 Ohm Flexible Low Loss Coax Cable, UV Resistant

Color Length (ft.) Price
Black

Length (ft.)

$2.70
add Add a length
Grouped product items
Color Length (ft.)
Black Length 500 ft.
$1,350.00
truck FREE SHIPPING ON ORDERS OVER $1000
Product Details

Learn everything you want to know about this product to make an informed purchase

Specifications
  • Wire Size

    30 AWG

Data provided on this page is subject to change based on different manufacturers variances.
See Less
More information

Cut to length - sold by the foot. Enter the desired footage in the QTY box.
Minimum 100' to maximum 1000'. Please call for longer put ups.

Application
Satellite Applications
Video Applications-CCTV, CATV, baseband or broadband
In-Building Feeder Runs
Any 75 ohm Wireless Application requiring an easily routed

Description

LMR®-75 standard is a UV Resistant Polyethylene jacketed cable designed for 20-year service outdoor use. The bending and handling characteristics are significantly better than any smooth wall or corrugated hard-line cables.

Flexibility and bendability are hallmarks of the LMR-400-75 cable design. The flexible outer conductor enables the tightest bend radius available for any cable of similar size and performance.

Low Loss is another hallmark feature of LMR-400-75. Size for size LMR-75 has the lowest loss of any flexible cable and comparable loss to semirigid hard-line cables.

RF Shielding is 50 dB greater than typical single shielded coax (40 dB). The multi-ply bonded foil outer conductor is rated conservatively at > 90 dB (i.e. >180 dB between two adjacent cables).

Weatherability: LMR-400-75 cables designed for outdoor exposure incorporate the best materials for UV resistance and have life expectancy in excess of 20 years.

Spec Sheet

Belden 9116 Spec SheetView Spec Sheet for Complete Details (PDF)

LMR-400-75 Specifications
Inner Conductor: Solid Bare Copper
Dialectric: Foam PE
Outer Conductor: Aluminum Tape
Overall Braid: Tinned Copper
Jacket: Black PE
