Thomas and Betts AMTS7502502, 2 Port, Same Side Splice Connector, 750-250 MCM Stranded

Thomas and Betts Blackburn AMTS7502502, 2 Port, Insulated Multi-tap, Mechanical Same Side Splice Connector, Dual Rated, 750 MCM to 250 MCM Stranded

Description:

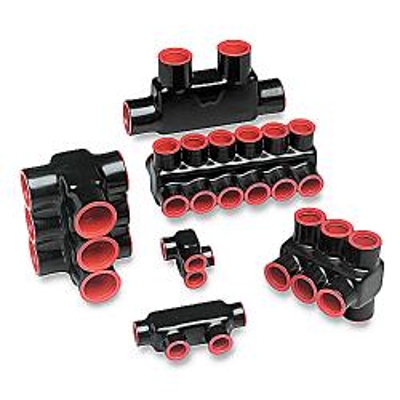

The high quality and built-in flexibility of the Blackburn® AMT Connectors reduce the cost of field installations on splices, taps, and terminations. They’re easy and quick to install, eliminating the need for time-consuming taping and provide superior insulation that lasts the life of the connection. Dual rated for use with Aluminum or Copper conductors.

Color:
Black

Features:
- PVC insulation eliminates failures and reduces outage costs
- Removable port and screw plugs
- UV resistant material
- Dual-Rated for copper and aluminum conductors (CSA Certified and UL Listed, for 600 V, 90°C)
- All cable entry are equipped with an anti-oxidation compound


Specifications:

Type:  AMT Connector
Conductor Size: 750 MCM to 250 MCM stranded
Number of Ports: 2
Hex Size: 1/2 Inch
Voltage Rating: 600 V
Body Material: Aluminum
Insulation Material: PVC
Temperature Rating: 90° Celcius
Weight: 1 lbs


Spec Sheet

View Spec Sheet for Complete Details
