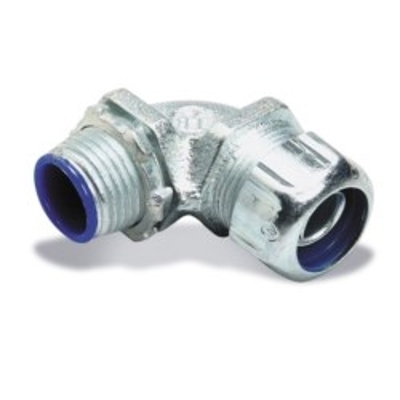

Thomas and Betts 5359, 3 in, 90° Malleable Iron Insulated, Liquidtight Flexible Metal Conduit Connector

Min: 1 ft., Max: 10000 ft. To order multiple lengths, simply enter the desired footage into the quantity fields. Each length will be delivered on its own spool.
Add a length

 Free Shipping on all orders over $1000

Thomas and Betts 5359, 3 in, 90 Degree

SKU
TB5359

Product Details

Learn everything you want to know about this product to make an informed purchase

Thomas and Betts 5359, 3 in, 90° Malleable Iron Insulated, Liquidtight Flexible Metal Conduit Connector

Description
Used where liquid-tight flexible metallic raceway is installed in outdoor or indoor locations, and exposed to continuous or intermittent moisture. Typical applications include raceway for general purpose industrial and commercial construction, Machine OEMs, panel builders, indoor and outdoor installations, liquid-tight applications against water, oils, cutting fluids, mild acids, for use in electrical circuits up to 1,000 V. Suitable for use in Class 1 Division 2, Class 2 Division 1 & 2 Hazardous Locations per NEC® Section 500.


Features & Benefits:
• Meets UL 514B and CSA C22.2, No. 18.3 for liquid-tight fittings
• Full compliance to IEC 61386-1, -23 requirements, CE Certified
• Trade sizes from 3/8” to 6” (12mm to 153mm)
• Insulated and non-insulated versions
• Straight, 45° and 90° conduit bodies
• NPT, ISO Metric and PG thead types
• Coordinated performance with T&B Liquidtight Systems Flexible Metallic Conduits
• Ingress protection ratings aligned with industrial enclosures
• Safe Edge® ground cones provide superior bonding
• Double Bevel Sealing Ring eases assembly and insures seal tight performance • Heat curled insulators protect wire sheathing from damage • Revolver® grounding version with GR part number suffix

UL, CSA & NEMA system ingress ratings:
• UL Listed type ratings tested to UL 50E requirements with UL Listed LFMC
• UL File No.: E23018
          – Indoor: Type 4, 12, 13
          – Outdoor: Type 3, 3R, 4
• CSA C22.2, No. 94.2: Type 3, 3R, 4, 12, 13
• NEMA 250: Type 3, 3R, 4, 12, 13



Working Temperature:
• UL: Gen: -20 to +105°C (-4 to +221°F)
• CSA: Gen: -20 to +105°C (-4 to +221°F)
• IEC/CE: Gen: -25 to +105°C (-13 to +221°F)



Spec Sheet

Belden 9451 Spec SheetView Spec Sheet for Complete Details

More Information
Wire Size30 AWG
TypeLiquid-Tight Connector
FinishZinc Chromate
Size3 in.
MaterialMalleable Iron
ManufactureThomas & Betts
Angle90°
Thread Size3" NPT
