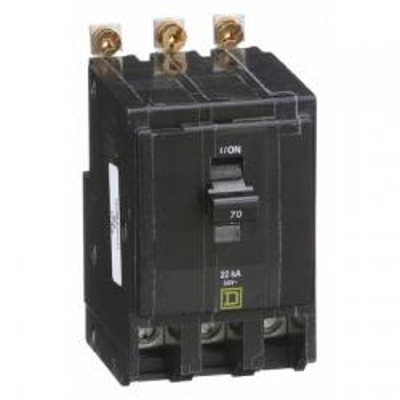

Square D QOB370VH, Mini Bolt On Circuit Breaker, 3 Pole, 70 Amp, 120/240 VAC, 22 kA

SKU SQDQOB370VH
truck FREE SHIPPING ON ORDERS OVER $1000

Total Items:

Total Price:
Product Details

Learn everything you want to know about this product to make an informed purchase

Specifications
  • Wire Size

    30 AWG

  • Manufacture

    Square D

  • Mounting Type

    Bolt On

  • Number of Poles

    3

  • Amps

    70

Data provided on this page is subject to change based on different manufacturers variances.
See Less
More information

Square D QOB370VH, Mini Bolt On Circuit Breaker, 3 Pole, 70 Amp, 120/240 VAC, 22 kA, 8-2 AWG Copper, Aluminum

Description
Schneider Electric/Square D Miniature Circuit Breaker with Visi-Trip indicator has a pressure plate to offer protection against damage to flexible lines. This Circuit Breaker has mounting bolts to hold the breaker in place and is designed for use with NQ or NQOD Panelboards.


Circuit Breaker Type
Standard

AIR Rating
22 kA

Phase
3

Voltage Rating
120/240 VAC

Amp Rating
70

Wire Size
8 to 2 AWG  (Copper)
8 to 2 AWG  (Aluminum)

Length
3.12"

Width
2.25"

Depth
2.91"

Weight
1.06 lbs

Operating Temperature
104 °F (40 °C)

Standards
UL Listed
CSA Certified
HACR rated (Heating, Air Conditioning, Refrigeration)

Spec Sheet

Belden 9451 Spec SheetView Spec Sheet for Complete Details
