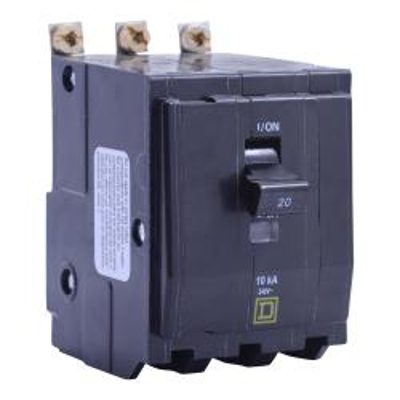

Square D QOB320, Mini Bolt On Circuit Breaker, 3 Pole, 20 Amp, 120/240 VAC, 10 kA

Square D QOB320, Mini Bolt On Circuit Breaker, 3 Pole, 20 Amp, 120/240 VAC, 48 VDC, 10 kA, 14-8 AWG Copper, Aluminum

Description
QOB Bolt-On Three-pole thermal-magnetic circuit breakers provide overcurrent protection and switching on AC and DC systems. Bolt-on QOB circuit breakers are for use in NQO and NQOD panelboards. QOB circuit breakers have an overcenter, trip-free toggle mechanism with quick-make, quickbreak action and positive handle indication. The tripping mechanisms in three-pole circuit breakers operate such that an overcurrent on any pole of the circuit breaker will cause all poles of the circuit breaker to open simultaneously. Each pole has an individual thermal-magnetic trip element calibrated for 40°C ambient temperature. QOB circuit breakers have Visi-Trip® trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. When the circuit breaker has tripped, the handle assumes a center position and the red Visi-Trip indicator appears in a window in the circuit breaker case. The Visi-Trip indicator is only visible when the circuit breaker has tripped. Trip indication immediately distinguishes the circuit from any other circuit which is merely in the on or off position. The circuit breaker can be reset by pushing the handle to OFF and then to ON.


Circuit Breaker Type
Standard

AIR Rating
10 kA

Phase
3

Voltage Rating
120/240 VAC
48 VDC

Amp Rating
20

Wire Size
14 to 8 AWG  (Copper)
14 to 8 AWG  (Aluminum)

Length
3.00"

Width
2.25"

Depth
2.91"

Weight
0.85 lbs

Operating Temperature
104 °F (40 °C)

Standards
UL Listed
CSA Certified
HACR rated (Heating, Air Conditioning, Refrigeration)


Spec Sheet

View Spec Sheet for Complete Details
