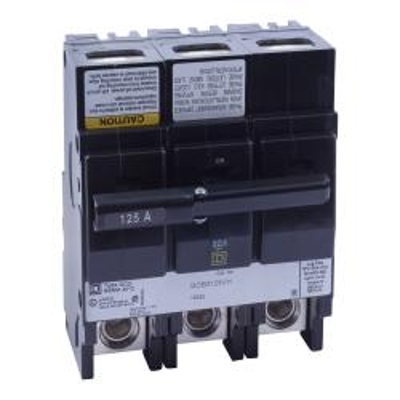

Square D QOB3125VH, Mini Bolt On Circuit Breaker, 3 Pole, 125 Amp, 120/240 VAC, 22 kA

Square D QOB3125VH, Mini Bolt On Circuit Breaker, 3 Pole, 125 Amp, 120/240 VAC, 22 kA, 4-300 MCM Copper, Aluminum

Description
Schneider Electric/Square D Miniature Circuit Breaker with Visi-Trip indicator has a pressure plate to offer protection against damage to flexible lines. This Circuit Breaker has mounting bolts to hold the breaker in place and is designed for use with NQ or NQOD Panelboards.


Circuit Breaker Type
Standard

AIR Rating
22 kA

Phase
3

Voltage Rating
120/240 VAC

Amp Rating
125

Wire Size
4 to 300 MCM  (Copper)
4 to 300 MCM  (Aluminum)

Length
5.72"

Width
4.50"

Depth
4.90"

Weight
3.95 lbs

Operating Temperature
104 °F (40 °C)

Standards
UL Listed
CSA Certified
NEMA

Spec Sheet

View Spec Sheet for Complete Details
