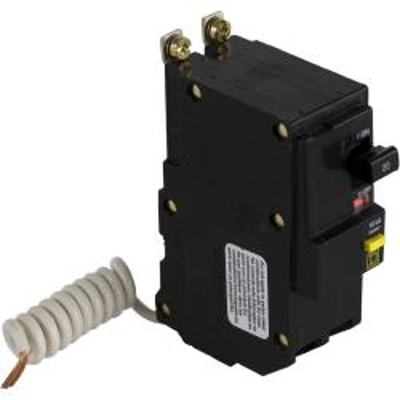

Square D QOB220GFI, Mini Bolt On Circuit Breaker, Ground Fault, 2 Pole, 20 Amp, 120/240 VAC, 10 kA

SKU SQDQOB220GFI
truck FREE SHIPPING ON ORDERS OVER $1000

Total Items:

Total Price:
Product Details

Learn everything you want to know about this product to make an informed purchase

Specifications
  • Wire Size

    30 AWG

  • Manufacture

    Square D

  • Mounting Type

    Bolt On

  • Number of Poles

    2

  • Amps

    20

Data provided on this page is subject to change based on different manufacturers variances.
See Less
More information

Square D QOB220GFI, Mini Bolt On Circuit Breaker, Ground Fault Interrupter class A 6 mA, 2 Pole, 20 Amp, 120/240 VAC, 10 kA, 14-8 AWG Copper, 12-8 AWG Aluminum

Description
Schneider Electric/Square D Ground fault miniature circuit breaker features thermal magnetic construction and pressure plate terminals. The circuit breaker provides overload/short circuit protection and is ideal for load centers, panelboards or speed-D switchboard distribution panels. Ground fault protecting class A 6mA


AIR Rating
10 kA

Voltage Rating
120/240 VAC

Amp Rating
20

Wire Size
14 to 8 AWG  (Copper)
12 to 8 AWG  (Aluminum)

Length
4.12"

Width
1.50"

Depth
2.91"

Weight
1 lb

Operating Temperature
104 °F (40 °C)

Standards
UL Listed
CSA Certified
