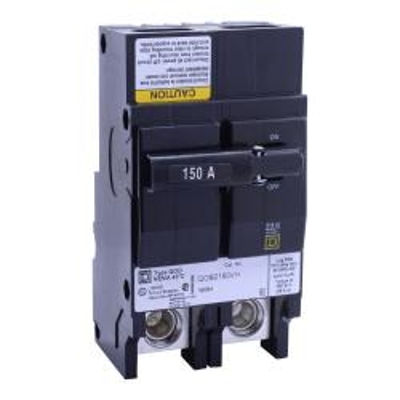

Square D QOB2150VH, Mini Bolt On Circuit Breaker, 2 Pole, 150 Amp, 120/240 VAC, 22 kA

Square D QOB2150VH, Mini Bolt On Circuit Breaker, 2 Pole, 150 Amp, 120/240 VAC, 22 kA
SKU SQDQOB2150VH

dollar

$0.00
truck FREE SHIPPING ON ORDERS OVER $1000

Total Items:

Total Price:
Product Details

Learn everything you want to know about this product to make an informed purchase

Specifications
  • Manufacture

    Square D

  • Mounting Type

    Bolt On

  • Number of Poles

    2

  • Amps

    50

Data provided on this page is subject to change based on different manufacturers variances.
See Less
More information

Square D QOB2150VH, Mini Bolt On Circuit Breaker, 2 Pole, 150 Amp, 120/240 VAC, 22 kA, 4 AWG to 300 MCM Copper, Aluminum

Description
Schneider Electric/Square D Miniature Circuit Breaker with Visi-Trip indicator has a pressure plate to offer protection against damage to flexible lines. This Circuit Breaker has one space and mounting bolts to hold the breaker in place and is designed for use with NQ or NQOD Panelboards.


AIR Rating
22 kA

Voltage Rating
120/240 VAC

Amp Rating
150

Wire Size
4 to 300 MCM  (Copper)
4 to 300 MCM  (Aluminum)

Length
5.72"

Width
3.00"

Depth
4.90"

Weight
2.65 lbs

Operating Temperature
104 °F (40 °C)

Standards
UL Listed
CSA Certified
HACR rated (Heating, Air Conditioning, Refrigeration)
