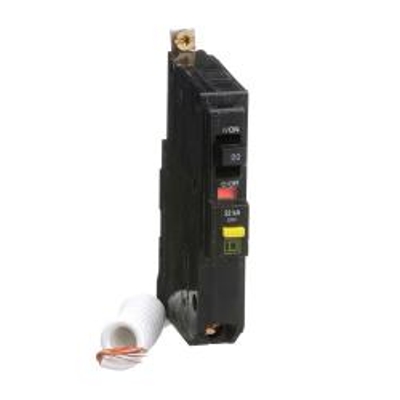

Square D QOB120VHGFI, Mini Bolt On Circuit Breaker, Ground Fault, 1 Pole, 20 Amp, 120 VAC, 22 kA
Square D QOB120VHGFI, Mini Bolt On Circuit Breaker, Ground Fault, 1 Pole, 20 Amp, 120 VAC, 22 kA
Product Details
Learn everything you want to know about this product to make an informed purchaseSquare D QOB120VHGFI, Mini Bolt On Circuit Breaker, Ground Fault, 1 Pole, 20 Amp, 120 VAC, 22 kA, 14-8 AWG Copper, 12-8 AWG Aluminum
Description
Schneider Electric/Square D Ground fault miniature circuit breaker with Visi-Trip Indicator features thermal magnetic construction and pressure plate terminals. The circuit breaker provides overload/short circuit protection and is ideal for load centers, panelboards or speed-D switchboard distribution panels.
AIR Rating
22 kA
Voltage Rating
120 VAC
Amp Rating
20
Wire Size
14 to 8 AWG (Copper)
12 to 8 AWG (Aluminum)
Length
4.12"
Width
0.75"
Depth
2.91"
Weight
0.53 lbs
Operating Temperature
104 °F (40 °C)
Standards
UL Listed
CSA Certified
Spec Sheet
View Spec Sheet for Complete Details| Stocked | Yes |
|---|---|
| Wire Size | 30 AWG |
| Manufacture | Square D |
| Mounting Type | Bolt On |
| Number of Poles | 1 |
| Amps | 20 |
