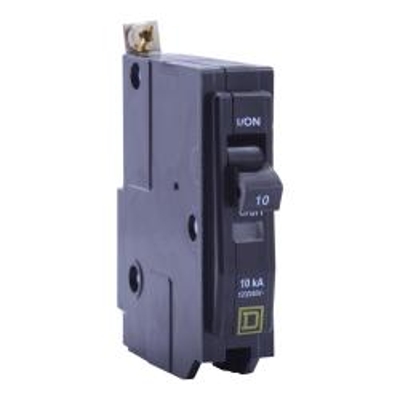

Square D QOB120HID, Mini Bolt On Circuit Breaker, 1 Pole, 20 Amp, 120/240 VAC, 10 kA

Square D QOB120HID, Mini Bolt On Circuit Breaker, 1 Pole, 20 Amp, 120/240 VAC, 10 kA, 14-8 AWG Copper, Aluminum

Description
QO-HID and QOB-HID circuit breakers are for use in high intensity discharge (HID) lighting systems, such as systems using mercury vapor, metal halide or high-pressure sodium lighting units. These circuit breakers are designed to handle the high inductive loads, harmonic currents and cycling which are inherent in HID lighting systems. QO-HID and QOB-HID circuit breakers are physically interchangeable with standard QO circuit breakers and accommodate the complete range of QO accessories. QO-HID and QOB-HID circuit breakers are manufactured with larger contacts than standard QO and QOB circuit breakers to allow switching of high inductive loads. They also have magnetic characteristics similar to QO-HM and QOB-HM high-magnetic circuit breakers to allow the circuit breaker to hold in against the high starting inrush currents which are typical in HID lighting systems.

AIR Rating
10 kA

Voltage Rating
120/240 VAC
48 VDC

Amp Rating
20

Wire Size
14 to 8 AWG  (Copper)
14 to 8 AWG  (Aluminum)

Length
3.00"

Width
0.75"

Depth
2.91"

Weight
0.3 lbs

Operating Temperature
104 °F (40 °C)

Standards
UL Listed
CSA Certified
HID rated (High Intensity Discharge)
SWD rated (Switching Duty)
