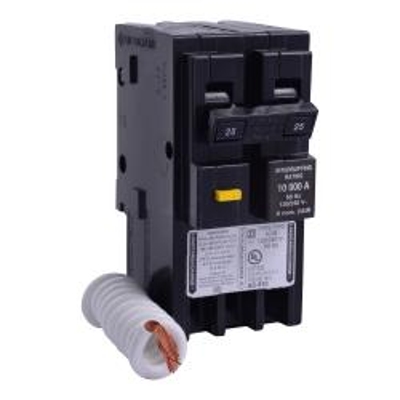

Square D HOM225GFI, Plug On Circuit Breaker, 2 Pole, 25 Amp, 120/240 VAC, 10 kA

SKU SQDHOM225GFI

dollar

$204.11
truck FREE SHIPPING ON ORDERS OVER $1000

Total Items:

Total Price:
Product Details

Learn everything you want to know about this product to make an informed purchase

Specifications
  • Wire Size

    30 AWG

  • Manufacture

    Square D

  • Number of Poles

    2

  • Amps

    25

Data provided on this page is subject to change based on different manufacturers variances.
See Less
More information

Square D HOM225GFI, Mini Plug In Ground Fault Circuit Breaker, 2 Pole, 25 Amp, 120/240 VAC, 10 kA, 12-4 AWG for 1 cable (Aluminum), 14-6 AWG for 1 cable (Copper)





AIR Rating
10 kA

Voltage Rating
120/240 VAC

Amp Rating
25

Wire Size
12 to 4 AWG 1 Cable (Aluminum)
14 to 6 AWG 1 Cable (Copper)


Height
3.13"

Width
2"

Depth
2.98"

Weight
1.15 lbs

Operating Temperature
104 °F (40 °C)

Standards
UL Listed
CSA Certified
HACR



Spec Sheet

Belden 9451 Spec SheetView Spec Sheet for Complete Details
