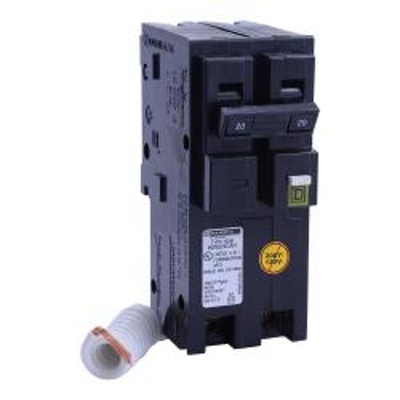

Square D HOM220CAFI, Plug On Circuit Breaker, 2 Pole, 20 Amp, 120/240 VAC, 10 kA

Square D HOM220CAFI, Mini Plug In Combination Arc Fault Circuit Interrupter, 2 Pole, 20 Amp, 120/240 VAC, 10 kA, 14-8 AWG for 1 cable (Copper, Aluminum) 14-10 AWG for 2 cables (Copper)

AIR Rating
10 kA

Voltage Rating
120/240 VAC

Amp Rating
20

Wire Size
14 to 8 AWG 1 Cable (Copper, Aluminum)
14 to 10 AWG 2 Cables (Copper)


Height
3.13"

Width
2"

Depth
2.98"

Weight
1.13 lbs

Operating Temperature
104 °F (40 °C)

Standards
UL Listed
CSA Certified
HACR



Spec Sheet

View Spec Sheet for Complete Details
