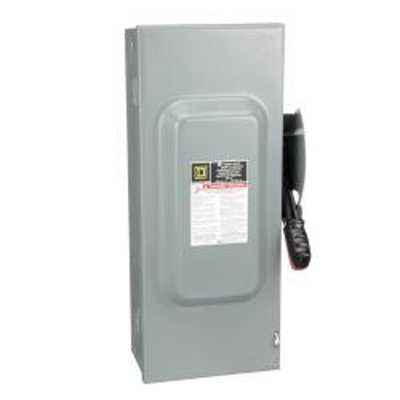

Square D H363, Single Throw, Heavy Duty Disconnect, 3P3W, 100 Amp, 600VAC/DC

Min: 1 ft., Max: 10000 ft. To order multiple lengths, simply enter the desired footage into the quantity fields. Each length will be delivered on its own spool.
Add a length

 Free Shipping on all orders over $1000

Square D H363, Single Throw, Heavy Duty Disconnect, 3P3W, 100 Amp, 600VAC/DC

SKU
SQD-H363

Product Details

Learn everything you want to know about this product to make an informed purchase

Square D H363, Single Throw Safety Switch, Heavy Duty Fusible Disconnect, NEMA 1, 3P3W, 100 Amp, 600VAC/DC



Short-Circuit Current
10 kA H or K
200 kA R, J or L



Voltage Rating
600 VAC/DC

Amp Rating
100

Wire Size
14 to 1/0 AWG Copper
12 to 1/0 AWG Aluminum



Height
21.25"

Width
10.25"

Depth
6.38"

Weight
17.35 lbs

NEMA Enclosure Rating
NEMA 1

Standards
UL Listed


Spec Sheet

Belden 9451 Spec SheetView Spec Sheet for Complete Details

More Information
Wire Size30 AWG
ManufactureSquare D
Amps100
