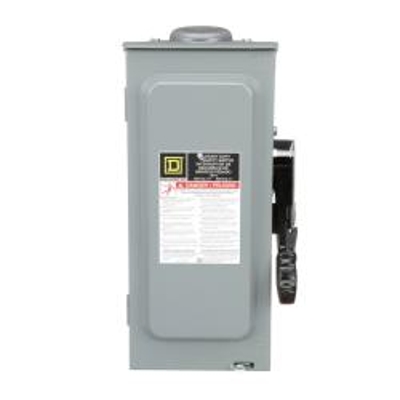

Square D H361RB, Single Throw, Heavy Duty Disconnect, 3P3W, 30 Amp, 600VAC/DC

Square D H361RB, Single Throw Safety Switch, Heavy Duty Fusible Disconnect, NEMA 3R, 3P3W, 30 Amp, 600VAC/DC



Short-Circuit Current
10 kA H or K
200 kA R, J or L


Voltage Rating
600 VAC/DC

Amp Rating
30

Wire Size
14 AWG to 6 AWG (Copper)
12 AWG to 6 AWG (Aluminum)


Height
14.88"

Width
7.55"

Depth
4.86"

Weight
9 lbs

NEMA Enclosure Rating
NEMA 3R galvannealed steel

Standards
UL Listed


Spec Sheet

View Spec Sheet for Complete Details
