$400.00

In Stock

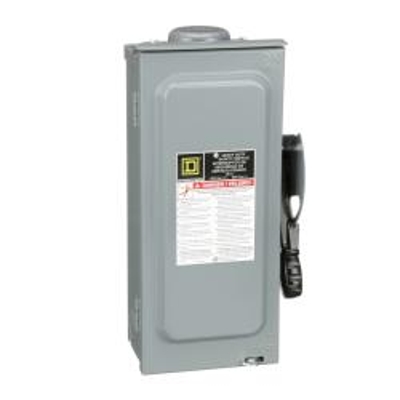

Square D H361NRB, Single Throw, Heavy Duty Disconnect, 3P4W, 30 Amp, 600VAC/DC

Min: 1 ft., Max: 10000 ft. To order multiple lengths, simply enter the desired footage into the quantity fields. Each length will be delivered on its own spool.
Add a length

 Free Shipping on all orders over $1000

Square D H361NRB, Single Throw, Heavy Duty Disconnect, 3P4W, 30 Amp, 600VAC/DC

SKU
SQD-H361NRB

Product Details

Learn everything you want to know about this product to make an informed purchase

Square D H361NRB, Single Throw Safety Switch, Heavy Duty Fusible Disconnect, with Neutral, NEMA 3R, 3P4W, 30 Amp, 600VAC/DC



Short-Circuit Current
10 kA H or K
200 kA R, J or L



Voltage Rating
600 VAC/DC

Amp Rating
30

Wire Size
14 AWG to 6 AWG (Copper)
12 AWG to 6 AWG (Aluminum)



Height
14.88"

Width
7.55"

Depth
4.86"

Weight
9 lbs

NEMA Enclosure Rating
NEMA 3R galvannealed steel

Standards
UL Listed


Spec Sheet

Belden 9451 Spec SheetView Spec Sheet for Complete Details

More Information
ManufactureSquare D
Amps30
