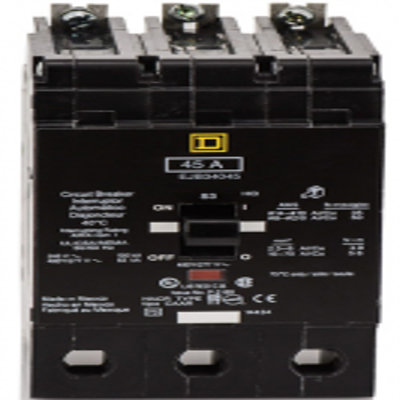

Square D EJB34045, Mini Bolt On Circuit Breaker, 3 Pole, 45 Amp, 277/480 VAC, 65 kA
Product Details
Learn everything you want to know about this product to make an informed purchaseSquare D EJB34045, Mini Bolt On Circuit Breaker, 3 Pole, 45 Amp, 277/480 VAC, 65 kA
Description
Schneider Electric/Square D Miniature circuit breaker has box-type lugs to accommodate 12 - 2/0 AWG aluminum and 14 - 2/0 AWG copper wires. The 3-Pole circuit breaker has voltage rating of 277/480 VAC, current rating of 45 Amps and short-circuit current rating of 65 kilo-Amps. Miniature circuit breaker has mounting bolts to hold the breaker in place. Standard size circuit breaker is ideally designed to offer superior overload and short circuit protection. Circuit breaker is an ideal choice for NF panel-boards.
AIR Rating
65 kA
Voltage Rating
277/480 VAC
Amp Rating
45
Wire Size
14 to 2/0 AWG (Copper)
12 to 2/0 AWG (Aluminum)
Length
5.66"
Width
2.94"
Depth
4.05"
Weight
4 lbs
Operating Temperature
104 °F (40 °C)
Standards
UL, cUL Listed
CSA Certified
NEMA
HACR rated (Heating Air Conditioning Refrigeration)
HID rated (High intensity discharge)
Spec Sheet
View Spec Sheet for Complete Details| Stocked | Yes |
|---|---|
| Wire Size | 30 AWG |
| Manufacture | Square D |
| Mounting Type | Bolt On |
| Number of Poles | 3 |
| Amps | 45 |
