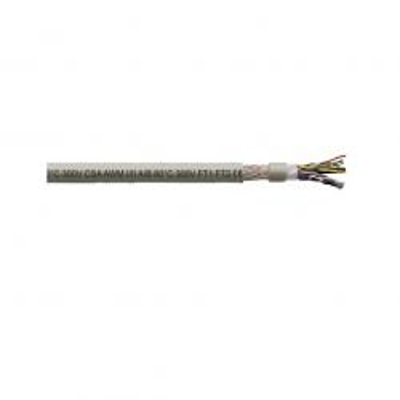

SAB Cable 7872407, 24 AWG 7 Pair, Shielded, Hi-Flex

SD 960 CP TP, Continuous flex twisted pairs shielded polyurethane  data cable for small bending radius

General Description
SD 960 CP TP is a very flexible, shielded multi-pair 80°C, 300 V cable designed for continuous flex applications. The special PUR jacket passes not only the stringent VDE test 0282 part 10 and HD 22.10 oil test providing the best oil resistance, but it also provides excellent chemical and abrasion resistance. An overall tinned copper shield is recommended whenever electrical interference distorts signal transmission, or when EMI emissions need to be suppressed. The SD 960 CP is designed for use on gantry robots, cable tracks, pick and place units, automated handling equipment, machine tools, conveyor systems and other continuous flexing applications in harsh environments.

Spec Sheet

View Spec Sheet for Complete Details (PDF)

Features:

• Oil resistant and Chemical resistant
• Very good EMC characteristics
• Very good flexibility
• High abrasion resistance


Jacket:
PUR

Standards:
UL AWM, CSA AWM, RoHS, CE

Conductor Material:
Bare Copper

Insulation  Material:
PVC


Specifications*:

Size: 24 AWG
Pairs: 7
Temperature Rating: -40C to +70C (Static), 5 to +70C DIN VDE
                                  : UL/CSA: up to +80°C
Voltage: DIN VDE max 350V, UL/CSA 300V
Outside Diameter: 0.386 inches
Weight: 0.107 lbs per ft
