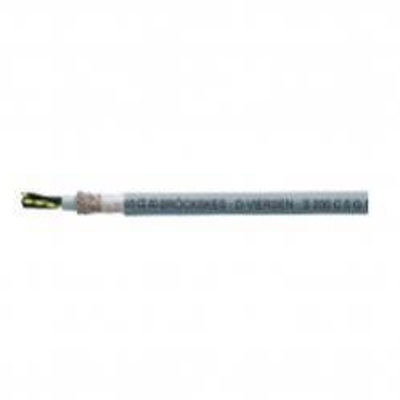

SAB Cable 7841801, 26 AWG, 18 Conductor, Continuous Flex, Shielded

SD 200 C - Continuous flex halogen-free TPE shielded data cable with extreme temperature range

General Description
SD 200 C is a continuous flex shielded multi-conductor cable with a temperature range of -40°C up to +90°C designed for high speed applications in the most extreme conditions. The halogen-free TPE outer jacket passes the stringent VDE test 0282 part 10 and HD 22.10 oil test and provides excellent resistance to chemicals and abrasion. An overall tinned copper shield is recommended whenever electrical interference distorts signal transmission, or when EMI emissions need to be suppressed.

Spec Sheet

View Spec Sheet for Complete Details (PDF)

Features:

• Oil resistant and Chemical resistant
• Free from paint wetting disruptive substances (LABS - free)
• Flexible at low temperatures
• Halogen-free
• Good EMC characteristics
• High abrasion resistance

Jacket:
PUR, TMPU

Standards:
RoHS, CE

Conductor Material:
Bare Copper

Insulation  Material:
TPE


Specifications*:

Size: 26 AWG
Conductors: 18
Temperature Rating: -50C to +90C (Static), -40C to +90C (Flexing)
Voltage: 500V
Outside Diameter: 0.256 inches
Weight: 0.043 lbs per ft
