RG-59 95% CMP Plenum Rated Coaxial Cable, 1000ft Spool

SKU RG59CMP

dollar

$257.56
truck FREE SHIPPING ON ORDERS OVER $1000

Total Items:

Total Price:
Product Details

Learn everything you want to know about this product to make an informed purchase

Specifications
  • Wire Size

    20 AWG

  • O.D. (Inches)

    0.185

Data provided on this page is subject to change based on different manufacturers variances.
See Less
More information

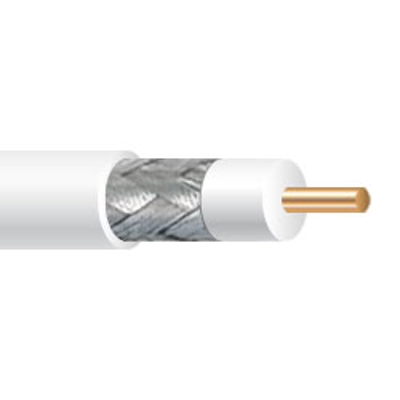

RG-59/U 95% CMP Plenum Rated Coaxial Cable, 1000ft Spool


Description:
RG-59/U Coaxial Cable, 75 Ohm Broadcast Coaxial


Applicable Standards:
SCTE IPS-SP-001
UL 1655, UL 13, UL 444, ROHS
NEC Rating CMP


Physical and Electrical Characteristics:
Conductor  --------------------  Solid Bare Copper
AWG ----------------------------  20
Diameter ----------------------- 0.32 Inches
Jacket --------------------------- Plenum PVC
Jacket Diameter -------------- 0.185 Inches
Nom Jacket Thickness ------ 0.015 Inches
Nominal Weight --------------- 22 lbs
Insulation  --------------------- FOAM FEP
Insulation Diameter --------- 0.135 Inches
Shield --------------------------- C.C.A Braid (Copper Covered Aluminum)
Shield coverage -------------- 95%
Temperature Rating --------- -20° to 60° C
Impedence --------------------- 75 Ohm
