    RG59/U 95% Braid CCTV 75 ohm Coaxial Cable

    Min: 1 ft., Max: 10000 ft. To order multiple lengths, simply enter the desired footage into the quantity fields. Each length will be delivered on its own spool.
    Add a length

     Free Shipping on all orders over $1000

    RG-59 95% CMR Coaxial Cable, 1000ft Spool

    SKU
    RG59CMR

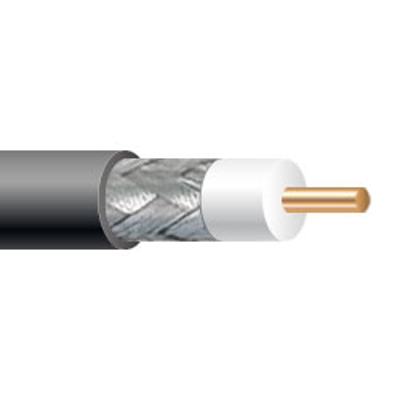

    main product photo

    Product Details

    Learn everything you want to know about this product to make an informed purchase

    RG59/U 95% Braid CCTV 75 ohm Coaxial Cable

    Applicable Standards:
    - Reference Standard: SCTE IPS_SP_001, UL 1655, UL13, UL
    - Product Standard Certification: ETL
    - Flamability Test: CMR

    Conductor:
    Solid Copper

    Insulation:
    Foam Polyethylene

    Shield:
    Braid: Aluminum

    Jacket:
    PVC

    Jacket Color:
    Black or White


    Specifications*:

    Size: 20 AWG
    Outside Diameter: 0.2283 inches
    Nominal Cap. pF/ft: 15.5
    Vel. of Popogation: 84%
    Nominal Impedance: 75

    *Data provided on this page is subject to change based on different manufacturers variances.

    More Information
    StockedYes
    Wire Size20 AWG
    O.D. (Inches)0.2283
