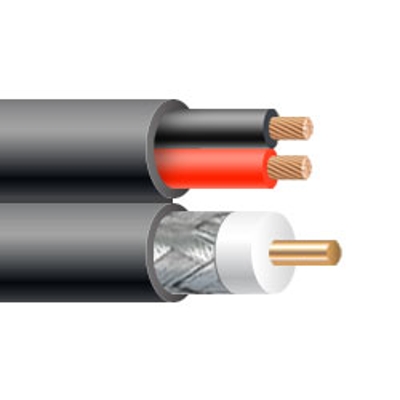

RG-59 + 18/2 Siamese Outdoor Direct Burial Cable







Min: 1 ft., Max: 10000 ft. To order multiple lengths, simply enter the desired footage into the quantity fields. Each length will be delivered on its own spool.
500 ft. Spool
1000 ft. Spool
Add a length

 Free Shipping on all orders over $1000

RG-59 + 18/2 Siamese Outdoor Direct Burial Cable, 500ft or 1000ft Spool

SKU
H59+182JOSPBK

Product Details

Learn everything you want to know about this product to make an informed purchase

RG-59 + 18/2 Siamese Outdoor Direct Burial Cable

Applicable Standards:
Reference Standard: SCTE IPS_SP_001, UL 1655, UL13, UL

RG59 CABLE SPECIFICATIONS*
Conductor: Copper Clad Steel
Size: 20 AWG
Outside Diameter: 0.3188 inches
Insulation: Foamed PE
Insulation Thickness: 0.0559 inches
Insulation Diameter: 0.1441 inches
Braid Shield: Copper Clad Aluminum
Braid Shield Coverage: 95%

18/2 POWER CABLE SPECIFICATIONS*
Conductor: Solid Copper
Size: 18 AWG
Number of Conductors: 2
Jacket: PVC
Jacket Thickness: Power Cable-0.0307 inches / CCTV-0.0314 inches
Cable Diameter: Power Cable-0.1756 inches / CCTV-0.2358 inches

ELECTRICAL PERFORMANCE
Frequency(MHz) Attenuation(dB/100m)
50 2.282
100 3.265
200 4.753
400 6.952
700 9.398
1000 11.441
2000 17.300
2200 18.376

ELECTRICAL CHARACTERISTICS
Temperature Rating: -20°C to 60°C
Impedance: 75 Ohms
Capacitance: 15.5 pF/ft
Conductor DCR@20°C: 28.6 ohms/1000ft
Velocity of Propogation: 84%
ROHS Complaint: Yes


*Data provided on this page is subject to change based on different manufacturers variances.

More Information
StockedYes
Wire Size30 AWG
# of Conductors3 Conductors
Direct BurialYes
