Ships in 3-5 Business Days

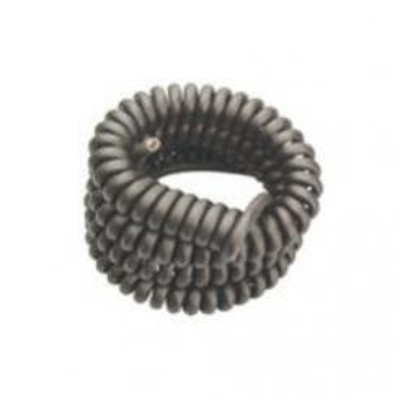

Retractable Coil Cord, 18/5 SJOOW 300V, UL/CSA, 2ft Coiled 10ft Extended
Product Details
Learn everything you want to know about this product to make an informed purchase***SHIPS WITHIN 1-3 BUSINESS DAYS FROM THE FACTORY***
Color:
Black
Retracted Length 2 ft Extended Length 10ft
Applications:
SJOOW 300V Flexible Cord applications include portable tools and equipment, portable appliances, small motors and associated machinery
Features:
Excellent resistance to oil and moisture. Good tensile strength, elongation and aging characteristics. High flexibility. Excellent abrasion resistance. Sunlight-resistant. UL Listed and CSA Certified for indoor and outdoor use. Temperature range: -40ºC to +90ºC
Standards:
UL Flexible Cord
CSA Flexible Cord
RoHS Compliant
Specifications*:
Size: 18 AWG
Number of Conductors: 5
Conductor Strand: 41/34
Cable OD: 0.44 inches
Coil OD: 1.60 inches
Weight: 1.9 lbs
Current Amps: 5.6
Color Code:
5 Conductors – Black, White, Green, Red, Orange
*Data provided on this page is subject to change based on different manufacturers variances.
| Wire Size | 18 AWG |
|---|---|
| # of Conductors | 5 Conductors |
| O.D. (Inches) | 0.44 |
| Ampacity | 5.6 |
| Jacket Color | Black |
