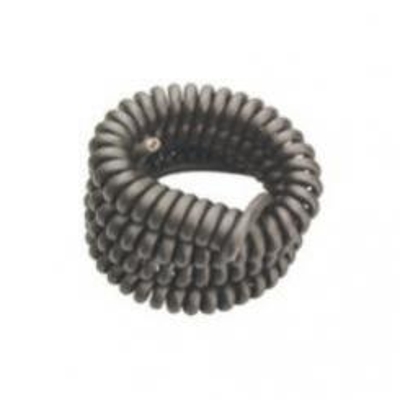

Retractable Coil Cord, 14/7 SOOW UL/CSA, 4FT Retracted, 20FT Extended (6' and 20' Lead)

Retractable Coil Cord, 14/7 SOOW UL/CSA, 4FT Retracted, 20FT Extended (6' and 20' Lead)

SKU
RCC147SO4-L6-L20

Product Details

Learn everything you want to know about this product to make an informed purchase

Color:
Black

Retractable Coil Cord, 14/7 SOOW UL/CSA, 4FT Retracted, 20FT Extended (6' and 20' Lead)

Applications:
SOOW Flexible Cord applications include portable tools and equipment, portable appliances, small motors and associated machinery

Features:
Excellent resistance to oil and moisture. Good tensile strength, elongation and aging characteristics. High flexibility. Excellent abrasion resistance. Sunlight-resistant. UL Listed and CSA Certified for indoor and outdoor use. Temperature range: -40ºC to +90ºC

Standards:
UL Flexible Cord
CSA Flexible Cord
RoHS Compliant

Specifications*:

Size: 14 AWG
Number of Conductors: 7
Conductor Strand: 41/30
Cable OD: 0.57 inches
Coil OD: 2.00 inches
Weight: 5.2 lbs
Current Amps: 10

Color Code:
7 Conductors – Black, White, Red, Green, Orange, Blue, Yellow

*Data provided on this page is subject to change based on different manufacturers variances.

More Information
StockedYes
Wire Size14 AWG
# of Conductors7 Conductors
O.D. (Inches)0.57
Ampacity 10
Jacket ColorBlack
Color CodeBlack, White, Red, Green, Orange, Blue, White w/ Black Tracer
