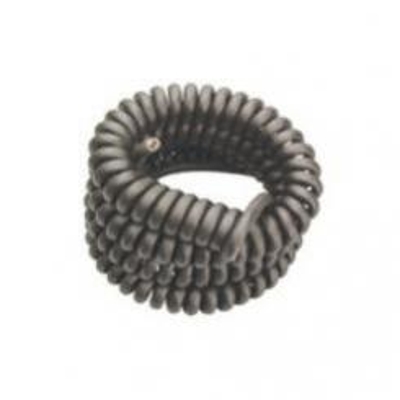

Retractable Coil Cord, 12/4 SOOW UL/CSA, 6FT-30FT Extended
Product Details
Learn everything you want to know about this product to make an informed purchaseColor:
Black
Retracted Length 6 ft. Extended Length 30ft
Applications:
SOOW Flexible Cord applications include portable tools and equipment, portable appliances, small motors and associated machinery
Features:
Excellent resistance to oil and moisture. Good tensile strength, elongation and aging characteristics. High flexibility. Excellent abrasion resistance. Sunlight-resistant. UL Listed and CSA Certified for indoor and outdoor use. Temperature range: -40ºC to +90ºC
Standards:
UL Flexible Cord -
CSA Flexible Cord
RoHS Compliant
Specifications*:
Size: 12 AWG
Number of Conductors: 4
Conductor Strand: 65/30
Cable OD: 0.68 inches
Coil OD: 2.41 inches
Weight: 10.87 lbs
Current Amps: 20/16
Color Code:
4 Conductors – Black, White, Green & Red
*Data provided on this page is subject to change based on different manufacturers variances.
| Wire Size | 12 AWG |
|---|---|
| # of Conductors | 4 Conductors |
| O.D. (Inches) | 0.68 |
| Ampacity | 20 |
| Jacket Color | Black |
| Color Code | Black, White, Red, Green |
