$245.00

Ships in 3-5 Business Days

Retractable Coil Cord, 12/4 SOOW UL/CSA, 5FT-25FT Extended

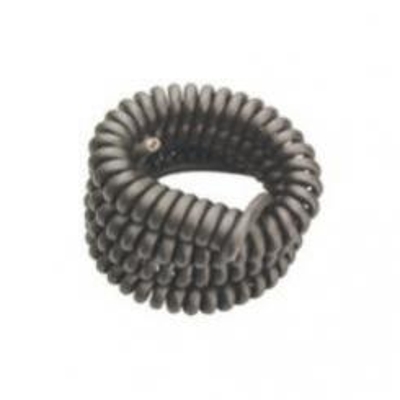

Retractable Coil Cord, 12/4 SOOW UL/CSA, 5FT Retracted, 25FT Extended

SKU
RCC124SO5

Product Details

Learn everything you want to know about this product to make an informed purchase

Color:
Black

Retracted Length 5 ft. Extended Length 25ft

Applications:
SOOW Flexible Cord applications include portable tools and equipment, portable appliances, small motors and associated machinery

Features:
Excellent resistance to oil and moisture. Good tensile strength, elongation and aging characteristics. High flexibility. Excellent abrasion resistance. Sunlight-resistant. UL Listed and CSA Certified for indoor and outdoor use. Temperature range: -40ºC to +90ºC

Standards:
UL Flexible Cord -
CSA Flexible Cord
RoHS Compliant

Specifications*:

Size: 12 AWG
Number of Conductors: 4
Conductor Strand: 65/30
Cable OD: 0.68 inches
Coil OD: 2.41 inches
Weight: 10.87 lbs
Current Amps: 20/16

Color Code:
4 Conductors – Black, White, Green & Red

*Data provided on this page is subject to change based on different manufacturers variances.

More Information
Wire Size12 AWG
# of Conductors4 Conductors
O.D. (Inches)0.68
Ampacity20
Jacket ColorBlack
Color CodeBlack, White, Red, Green
