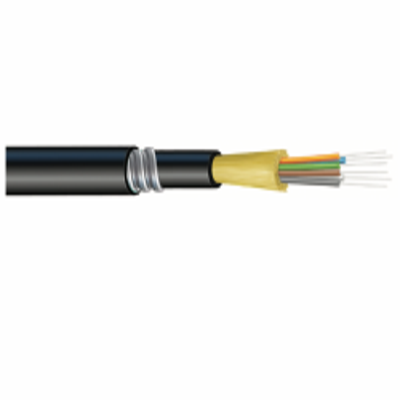

24 Strand Fiber Count, Indoor Tight Buffered, Singlemode, Interlock Armor, Plenum Fiber Optic Cable
General Description:
Prysmian’s ezDISTRIBUTION cable family packages up to 144 color-coded 900 μm tight buffered fibers into a single flame retardant cable. This cable design is available in both riser rated and plenum rated versions for deployment in any inside plant re-code application. The UV-resistant outer jacket, coupled with dry waterblocking technology, address environmental concerns for outdoor use. The tight buffered distribution cable supports standard installation practices and may be easily terminated using established eld connectorization methods.
Features:
- Interlock armor eliminates need for conduit and supports one-step installation
- 7x improvement in crush resistance over unarmored products
- 900μm tight buffered fibers designed to support rapid field termination
- Single-unit designs provide space savings and cost advantages
- Industry standard color coding for quick, error-free fiber identification
- Sub-unit construction improves organization and termination practices
- Available with bend-insensitive single-mode and multimode optical fibers
- Flexible, flame-retardant, and color coded outer jacket
- Supports all high performance networks including OM4/10 gigabit ethernet systems
Applications:
Flame-rated and crush-resistant cable designs providing unsurpassed performance for intrabuilding applications requiring premium mechanical protection to cross floors in multi-level buildings or for placement in air handling spaces.

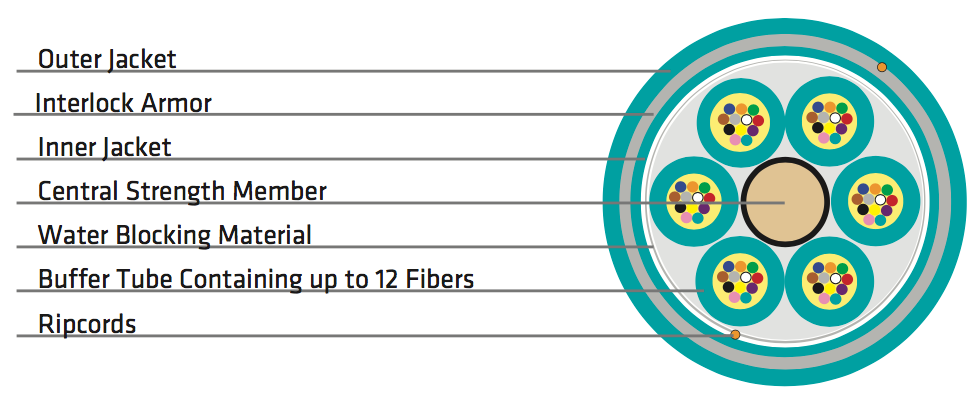

Construction:
Standard tight buffered cable designs with jacketed interlock armor
Flame Rating:​​​
Plenum (OFNP / OFCP / FT6)
Fiber Count:
24
Fiber Type:
EB - Enhanced Single-Mode
Standards:
ANSI/ICEA S-83-596
UL-1666,
NFPA 262
CSA 22.2 No 230
Telcordia GR-409
CE RoHS Compliant
Spec Sheet
View Spec Sheet for Complete Details (PDF)
