Prysmian 2 Fiber Zipcord, Indoor Tight Buffered Interconnect, Singlemode, Riser Rated Fiber Optic Cable

Min: 1 ft., Max: 10000 ft. To order multiple lengths, simply enter the desired footage into the quantity fields. Each length will be delivered on its own spool.
1000 ft.
Add a length

 Free Shipping on all orders over $1000

Prysmian 2 Fiber Zipcord, Indoor Tight Buffered Interconnect, Singlemode, Riser Rated Fiber Optic Cable

SKU
F-520Z-00-CU-002-EA

Product Details

Learn everything you want to know about this product to make an informed purchase

***SHIPS WITHIN 4-5 BUSINESS DAYS • FOR CUSTOM LENGTHS CALL US AT 855-880-8010***

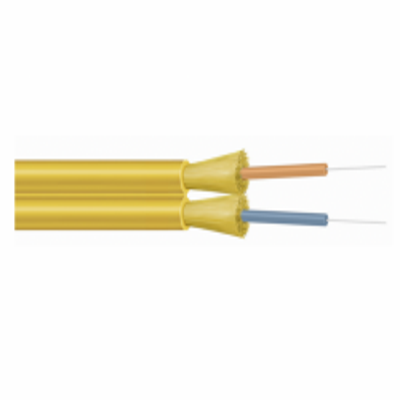

2 Fiber Zipcord, Indoor Tight Buffered, Interconnect, Singlemode, Riser Rated Fiber Optic Cable


General Description:
Prysmian’s ezINTERCONNECT cable family includes cable designs of one and two 900μm tight buffered fibers into a single flame retardant cable. Cable designs are available in both riser rated and plenum rated versions for deployment in any indoor application. A riser LSZH option is also available. The duplex (two fiber) versions are commonly in “zipcord”or “round” arrangement. Also available in round constructions with 4 fibers (duplex and quad).

Features:
- 900μm and 600μm tight buffered fibers designed to support rapid termination
- Available in 2.9mm, 2.0mm and 1.6mm zipcord designs
- Available in 4.8mm and 2.9mm round designs
- LSZH constructions available
- Available with bend-insensitive single-mode and multimode optical fibers
- Flexible, flame-retardant and color coded outer jacket
- Supports all high performance networks including OM4/10 gigabit ethernet systems

Applications:
Versatile indoor flame-rated cable providing unsurpassed performance for network patching/configuration. Easily
terminated into jumper/pigtail cable assemblies.

Construction:
2 fiber zipcord, 2mm

Flame Rating:​​​
Riser (OFNR / FT4)

Fiber Count:
2

Fiber Type:
EA - Single-Mode (ESMF, bend-insensitive)

Standards:
ANSI/ICEA S-83-596
UL-1666
NFPA 262
CSA 22.2 No 230
Telcordia GR-409
CE RoHS Compliant

Spec Sheet

Belden 1505A Spec SheetView Spec Sheet for Complete Details (PDF)
