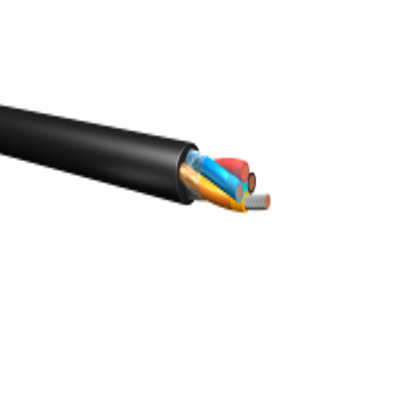

Perfect-A-Flex, 16-4C Type TC Cable, Neoprene Jacket, 600V

Perfect-A-Flex®, 16-4C UL Type TC Cable, 600 Volt, -54°C to 90°C Exane® Insulation Neoprene Jacket Tinned Copper Conductors

Cut to length - sold by the foot. Enter the desired footage in the QTY box.
Minimum 50' to maximum 1000'. Please call for longer put ups.

Color:
Black

Applications:
Very flexible cable for use on cable tender systems, festooned cable applications, pendant cable drops, overhead bridge cranes, warehouse stacking cranes, motor- or spring-driven reels, or any tough industrial application that requires both strength and flexibility. Approved for use in cable trays, in raceways supported by a messenger wire, in open air, and for direct burial applications. UL approved for use at 90°C for continuous operation, 130°C for emergency overload conditions, and 250°C for short circuit conditions.

Conductor:
Tinned soft annealed copper per ASTM B-33, Geolay stranding per ASTM B-286

Insulation:
Irradiated cross-linked polyolefin (Exane®)

Jacket:
Sunlight-resistant Neoprene per ICEA S-19-81

Insulation Jacket:
Clear Nylon

Flame Tests:
UL and IEEE 383 (70,000 BTU/hr) Flame Test
ICEA (210,000 BTU/hr) Flame Test
CSA FT4 Flame Test
 Individual conductors pass the UL VW-1 Flame Test

Additional Standards:
UL Type TC tray cable per NEC Article 336
CAN/CSA-C22.2 No. 239-M91 type CIC

Color Code:
Control Sizes – ICEA Method 1, Table E-2

Specifications*:

Size: 16 AWG
Number of Conductors: 4
Conductor Strand: 26
Insulation Thickness: 0.016 inches
Jacket Thickness: 0.060 inches
Outside Diameter: 0.37 inches
Weight: 0.09 lbs per ft
