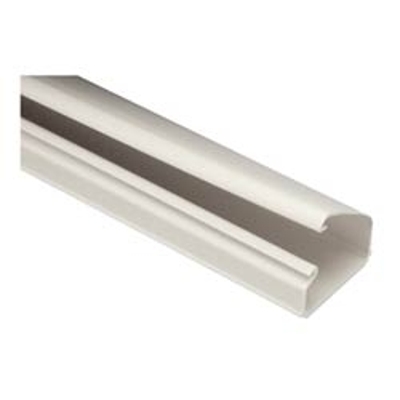

Panduit LD10EI6-A, LD10 Low Voltage 1 piece, Single Surface Channel Raceway, 6FT

Panduit LD10EI6-A, LD10 Low Voltage 1 piece, Single Surface Channel Raceway, 6FT

SKU
PANLD10EI6-A

Product Details

Learn everything you want to know about this product to make an informed purchase

Panduit LD10EI6-A, LD10 Low Voltage 1 piece, Single Surface Channel Raceway, with Adhesive, 6FT in length, 1.50" Width, .94" Height


Description:
Type LD non-metallic single channel, a one-piece design, adhesive backed, hinged cover surface raceway, shall be used to route, protect and conceal low voltage data, voice, and fiber optic cabling. The raceway will include a full complement of bend radius control and standard fittings consisting of, but not limited to: elbows (internal and external), couplings for joining raceway s ections, blank end fittings for closing open ends of the raceway, entrance fittings, reducer fittings, and tee fittings. The bend radius control fittings shall incorporate a minimum 1" bend radius as recommended for Category 5 UTP and fiber optic cables in TIA/EIA 568-A. Type LD raceway will be manufactured in 3 different lengths from impact-resistant material with a flammability rating of UL94V-0 . Type LD Raceway finish shall be pure color and will resist scratches and dents and will not peel or corrode. Type LD Raceway available in 3 sizes and four standard colors and shall be optimized for use with the PANDUIT ® PAN-NET ™  Network Cabling System.

Features:
For routing data and low voltage cabling
- One-piece hinged design allows cables to be laid in
- Factory applied adhesive backing speeds installation
- FT4 rated CE - Compliant with LVD 2006/95/EC (EN50085-1, EN 50085-2-1)
- Terminates using surface mount olet box solutions or Panduit(TM) Mini-Com(TM) Surface Mount Boxes

Raceway Material:
Rigid PVC

Color:
Electric Ivory

Standards
Ul94V-0, Ft4, Meets TIA/EIA Standards, UL5A Listed, UL Compliant.

Spec Sheet

Belden 9451 Spec SheetView Spec Sheet for Complete Details

More Information
Wire Size30 AWG
ManufacturePanduit
