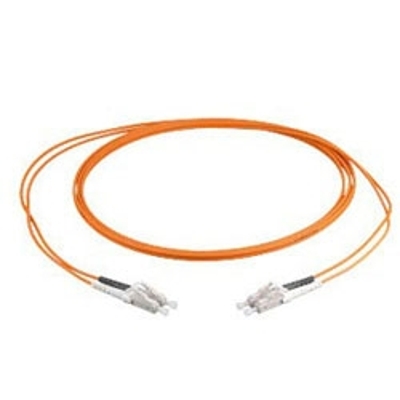

LSZH Zippered Fiber Patch Cable, MM OM1, LC/LC Duplex, 2 or 3 Meter
Product Details
Learn everything you want to know about this product to make an informed purchaseLSZH Zippered Fiber Patch Cable, MM OM1, LC/LC Duplex, 2 or 3 Meter
Description:
Patch cables are used for non -permanent connections between patch panels, transmission equipment, etc. Pre -assembled cables allow for the implementation of complete Plug & Play solutions. When such a solution is adopted with accurate dimensioning and appropriate cable routing, it is possible to install even large cabling systems rapidly.
Features and Benefits:
Connectors
- LC Duplex connector according to TIA/EIA-604 -10
- All connectors are tested to FOTP -21
- Connectors are pre-radius polished to provide the optimal end-face geometry for long-term performance
Cable
- Low smoke (IEC 61034) and zero-halogen (LSZH), flame retardant to IEC 60332-3-24 (C) and noncorrosive to IEC 60754-2 (FRNC)
- Cables are metal free; hence, there are no ground-loop or potential-equalization problems. Completely dry design (without gel)
Standards:
TIA/EIA-604-10 / TIA/ EIA-604-10
Specifications*:
Flame Rating: LSZH™/FRNC
Cable assembly: 2 or 3 Fibre
Fibre Category: 62.5 µm MM (OM1)
| Stocked | Yes |
|---|
