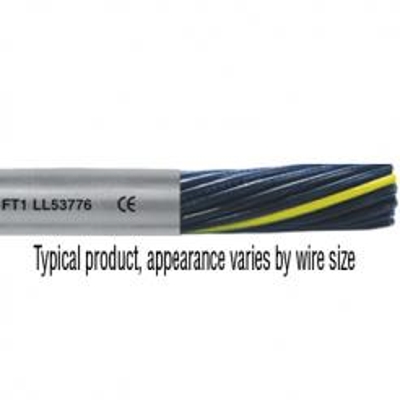

Lapp U601625,16/25c, Flexible Cable OLFLEX 190 Multiconductor Oil Resistant, UL MTW, CSA, CE, 600V

SKU LAPU601625
How will you purchase this wire?
6.260000 6.260000
truck FREE SHIPPING ON ORDERS OVER $1000
MIN: 1 FT. | MAX: 10000 FT. 1 10000 tooltip To order multiple lengths, simply enter the desired footage into the quantity fields. Each length will be delivered on its own spool.

Please Select Color(s)

Multiple colors can be selected

....
Quantity

Select your preferred quantity for each color below. Add additional colors and lengths as needed.

Lapp U601625,16/25c, Flexible Cable OLFLEX 190 Multiconductor Oil Resistant, UL MTW, CSA, CE, 600V

Color Length (ft.) Price
N/A

Length (ft.)

add Add a length
Grouped product items
Color Length (ft.)
N/A Length 500 ft.
truck FREE SHIPPING ON ORDERS OVER $1000
Product Details

Learn everything you want to know about this product to make an informed purchase

Specifications
  • Cable Type

    MTW - Machine Tool Wire

  • Wire Size

    16 AWG

  • # of Conductors

    1 Conductor

  • Conductor Material

    Bare Copper

  • O.D. (Inches)

    0.73

  • Insulation Material

    PVC - Polyvinyl Chloride

  • Direct Burial

    No

  • Manufacture

    Lapp

Data provided on this page is subject to change based on different manufacturers variances.
See Less
More information

Cut to length - sold by the foot. Enter the desired footage in the QTY box.

General Description
For Machinery: CNC machining centers, Grinding machines, Bottling equipment, Conveyors, Processing equipment, Assembly lines and Control panels

Spec Sheet

Belden 9451 Spec SheetView Spec Sheet for Complete Details (PDF)

Features:
Gray Color Jacket, Extremely Oil Resistant Flexible Multi Conductor Cables

Jacket:
Polyvinylchloride

Standards:
UL AWM 2587 + 21098, UL Type MTW, CSA AWM II A/B FT 1, CSA C22.2 210.2, NFPA, CE

Conductor Material:
Bare Copper

Insulation  Material:
Polyvinylchloride/Nylon


Specifications*:

Size: 16 AWG
Conductors: 25 AWG
Number of Strands: 28/30
Temperature Rating: -5 to +90 °C
Voltage: 600V
Outside Diameter: 0.73 inches
Weight: 0.416 lbs per ft
