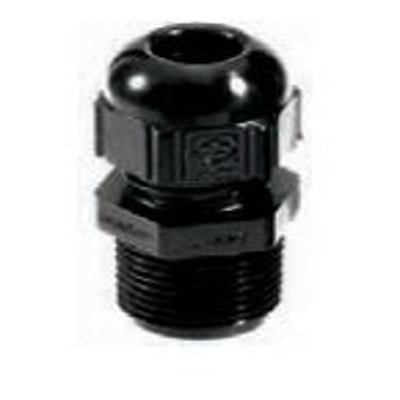

Lapp S2101, Strain Relief Cord Connector, Non-Metallic, Liquid Tight, Polyamide, OD Range - 0.748 - 1.000 in.

Lapp S2101, Strain Relief Cord Connector, Non-Metallic, Liquid Tight, Polyamide, Min OD 0.748, Max OD 1.000 inch

Description:
SKINTOP® SLN/SLRN is a durable, liquid-tight, easy-to-assemble strain relief cable gland with NPT thread that is universally suited for all types of machinery & equipment, including automation, motion control, process control, and robotics.

Features:
- The heavy duty SKINTOP® design provides great pullout strength and very reliable strain relief
- Superior integrated locking mechanism includes an internal ratchet for vibration-proof protection
- Multi-trapezoidal thread requires just one twist to tighten
- Generous high-quality neoprene bushing provides a liquid-tight and dust-proof hermetic seal

Specification:
Thread: NPT
Thread type: NPT 1"
Construction material: Polyamide, CR
Color: Black
Clamping range: 0.748 - 1.000 in
IP rating: IP68, 5 Bar
Temperature range: -20 C to +80 C
RoHS: Y

Spec Sheet

View Spec Sheet for Complete Details
