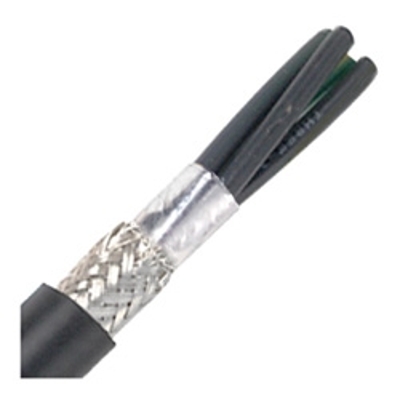

Lapp 761604, 16 AWG 4 Conductor Reduced Diameter Shielded VFD Cable

Cut to length - sold by the foot. Enter the desired footage in the QTY box.
Minimum 50' to maximum 1000'. Please call for longer put ups.

General Description
ÖLFLEX® VFD Slim is a reduced-diameter shielded motor cable for VFD Drives. It is designed with “Lapp Surge Guard” semi-conductive material to hold up to nonlinear power distortions associated with VFD drives. This special material smooths out the stranded copper and disperses increases in voltage caused by wave reflection, harmonics, in-rush current, and spikes to prevent conductor and cable failure.

Applications:
VFD drive and motor connections; web presses; HVAC; conveyors; any on/off applications using a VFD drive and motor

Spec Sheet

View Spec Sheet for Complete Details (PDF)

Features:
Lapp Surge Guard insulation system
UL TC-ER & c(UL) CIC TC approved
Double-shielded for extra protection
Contains pair for brake or temperature sensor

Jacket:
Black PVC

Standards:
UL, ULTC, CSA, CE, RoHS, NFPAÔ:

Conductor Material:
Tinned Copper

Insulation Material:
Lapp Surge Guard/PVC/nylon

Color Code:
Black with white numbers plus green/yellow ground

Specifications:

Size: 16 AWG
Conductors: 4
Temperature Rating: -25C to +90C
Voltage: 600 V (UL/CSA TC) 1000 V (Wind Turbine Tray Cable)
Outside Diameter: 0.470  inches
Weight: 0.142 lbs per ft
