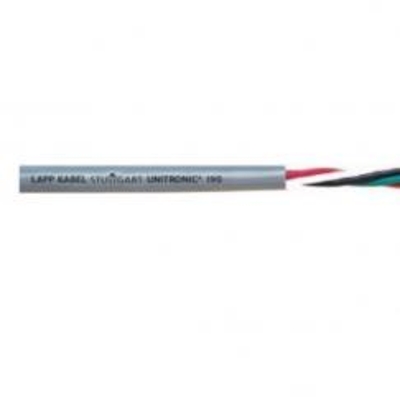

Lapp 602820, 28 AWG 20 Conductor, Unshielded, Flexible Signal and Control Cable, UNITRONIC 190
Product Details
Learn everything you want to know about this product to make an informed purchaseGeneral Description
UNITRONIC® 190 is a multi-conductor cable for communication, signal, and control applications. It is designed for general purpose installations of electrical machinery.
Spec Sheet
View Spec Sheet for Complete Details (PDF)
Features:
- Extended temperature range of -40°C to 105°C
- UV-resistant jacket
- Sequential foot marking for ease of installation
- For machinery: RS-232; data buses; process control instrumentation; low-voltage signaling
and interconnect
Jacket:
Gray PVC (Polyvinylchloride)
Standards:
UL/CSA, RoHS, NFPA
Conductor Material:
Finely stranded tinned copper
Insulation Material:
SR-PVC (Semi-Rigid Polyvinylchloride)
Specifications*:
Size: 28 AWG
Conductors: 20
Temperature Rating: -40°C to 105°C
Voltage: 300V
Outside Diameter: 0.269 inches
Weight: 0.036 lbs per ft
| Stocked | Yes |
|---|---|
| # of Conductors | 20 Conductors |
| Manufacture | Lapp |
