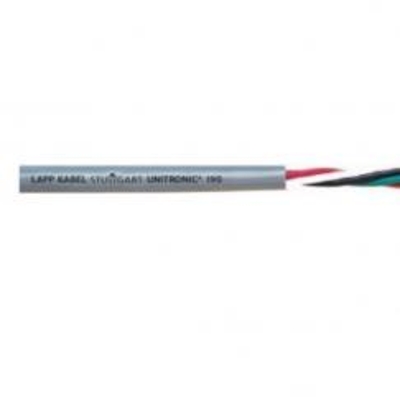

Lapp 602636, 26 AWG 36 Conductor, Unshielded, Flexible Signal and Control Cable, UNITRONIC® 190
Lapp 602636, 26 AWG 36 Conductor, Unshielded, Flexible Signal and Control Cable, UNITRONIC 190
SKU
LAP602636-FT
Product Details
Learn everything you want to know about this product to make an informed purchaseGeneral Description
UNITRONIC® 190 is a multi-conductor cable for communication, signal, and control applications. It is designed for general purpose installations of electrical machinery.
Spec Sheet
View Spec Sheet for Complete Details (PDF)
Features:
- Extended temperature range of -40°C to 105°C
- UV-resistant jacket
- Sequential foot marking for ease of installation
- For machinery: RS-232; data buses; process control instrumentation; low-voltage signaling
and interconnect
Jacket:
Gray PVC (Polyvinylchloride)
Standards:
UL/CSA, RoHS, NFPA
Conductor Material:
Finely stranded tinned copper
Insulation Material:
SR-PVC (Semi-Rigid Polyvinylchloride)
Specifications*:
Size: 26 AWG
Conductors: 36
Temperature Rating: -40°C to 105°C
Voltage: 300V
Outside Diameter: 0.366 inches
Weight: 0.072 lbs per ft
| Stocked | Yes |
|---|---|
| # of Conductors | 36 Conductors |
| Manufacture | Lapp |
